Overview

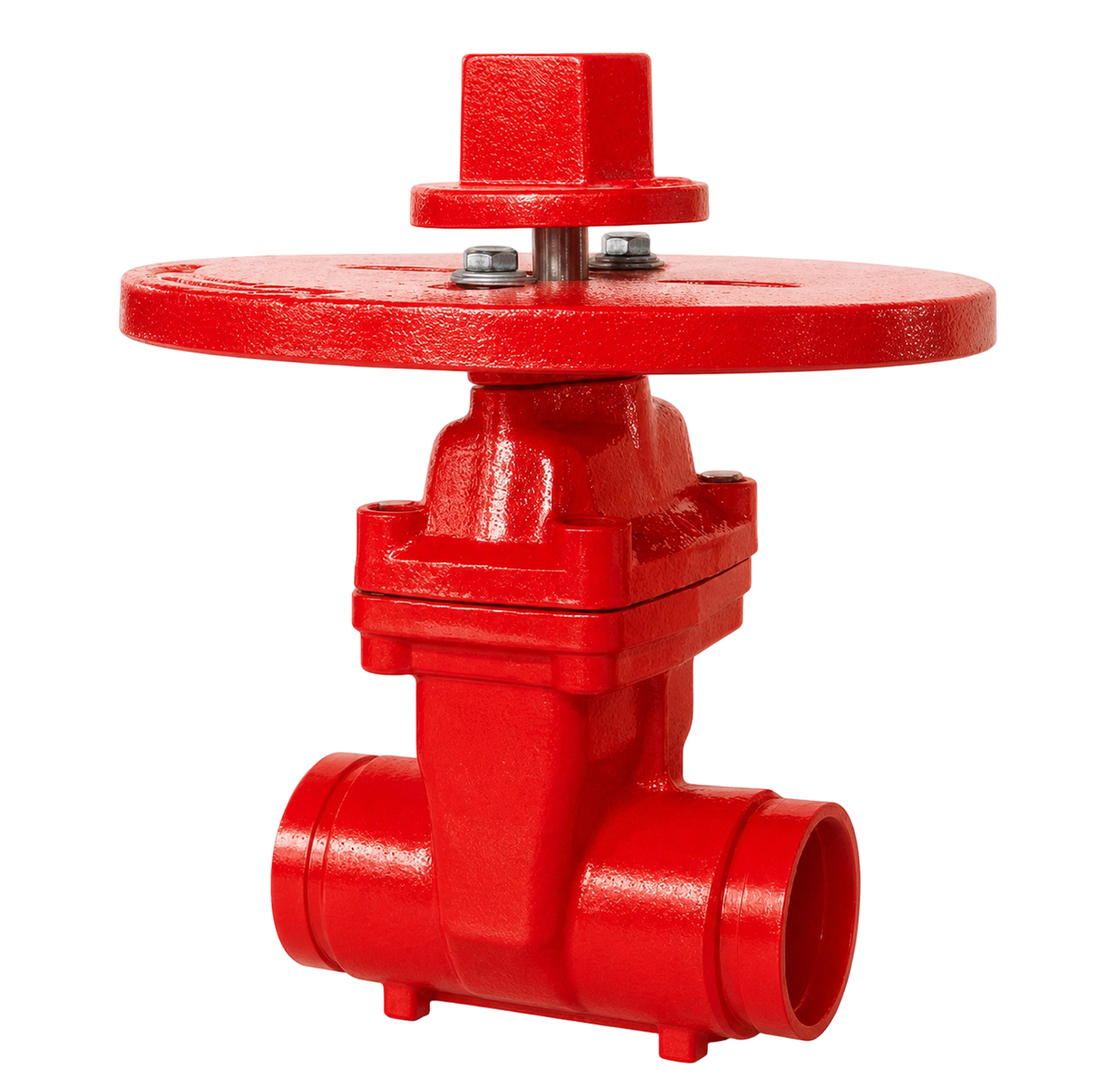

The VTCON Grooved NRS Gate Valve (VT-GV-GR-NRS-200) is a 200 PSI ductile iron gate valve for water-based fire protection systems.
It uses a resilient wedge design with an EPDM sealing surface to support reliable shut-off and a straight-through waterway. The non-rising stem design provides compact operation and is suitable for fire water piping installations.
This website model corresponds to catalogue model Z85. Use the verified dimension table from catalogue P32 and confirm certification coverage before order.
Key Features
• NRS resilient wedge gate valve
• Grooved connection
• Maximum working pressure: 200 PSI
• Ductile iron body and bonnet
• EPDM resilient sealing
• Straight-through waterway
• Interior and exterior epoxy coating
• Designed for indoor and outdoor fire protection water systems
• Catalogue model and dimensions verified against the uploaded model mapping table
Technical Specifications
| Items | Specification |
|---|---|
| VTCON Model | VT-GV-GR-NRS-200 |
| Original Catalogue Model | Z85 |
| Product Name | Grooved NRS Gate Valve |
| Valve Type | Resilient wedge NRS gate valve |
| Connection | Grooved |
| Design Standard | ANSI / AWWA C515 |
| Face-to-Face Standard | ASME B16.10 |
| Flange Standard | Not applicable |
| Items | Specification |
|---|---|
| Groove Standard | ANSI/AWWA C606 or metric groove standard |
| Maximum Working Pressure | 200 PSI |
| Maximum Testing Pressure | 400 PSI |
| Working Temperature | 0–80°C / 32–176°F |
| Body | Ductile iron |
| Disc | Ductile iron with EPDM resilient sealing |
| Coating | Epoxy coating or coating upon request |
| Size Range | 2"–12" / DN50–DN300 |
| Approvals | UL / CUL / FM and NSF/ANSI 61 & 372 shown for the range |
Product Structure & Dimensions

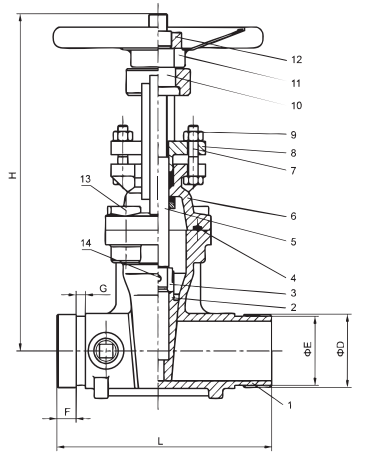

Grooved NRS Gate Valve Structure & Dimensions
| Size (in) | DN | L (mm) | H (mm) | Flange D (mm) | Pipe O.D. (mm) | Groove E (mm) | F (mm) | G (mm) |
|---|---|---|---|---|---|---|---|---|
| 2 | 50 | 178 | 265 | 60.3 | 57.2 | 15.9 | 7.9 | |
| 2-1/2 | 65 | 190 | 289 | 76.1 | 72.3 | 15.9 | 7.9 | |
| 3 | 80 | 203 | 326 | 88.9 | 84.9 | 15.9 | 7.9 | |
| 4 | 100 | 229 | 355 | 114.3 | 110.1 | 15.9 | 9.5 | |
| 5 | 125 | 254 | 410 | 141.3 | 137 | 15.9 | 9.5 | |
| 6 | 150 | 267 | 455 | 168.3 | 163.9 | 15.9 | 9.5 | |
| 8 | 200 | 292 | 558 | 219.1 | 214.4 | 19 | 11.1 | |
| 10 | 250 | 330 | 648 | 273 | 268.3 | 19 | 12.7 | |
| 12 | 300 | 356 | 745 | 323.9 | 318.3 | 19 | 12.7 |
Dimensions are for reference only. Please contact VTCON for detailed drawings and project requirements.
