Overview

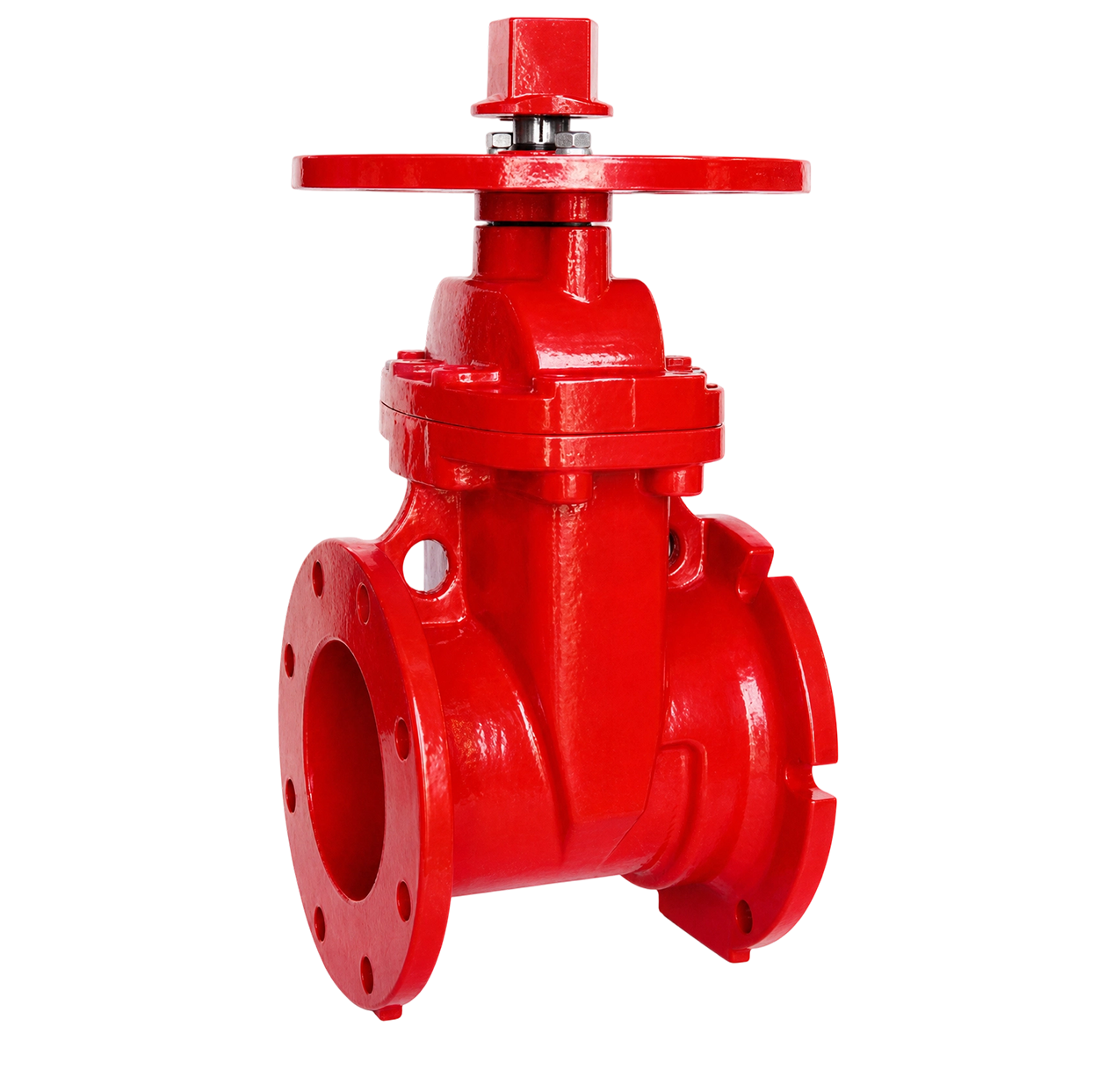

The VTCON Flanged NRS Gate Valve Version A (VT-GV-FL-NRS-300-A) is a 300 PSI ductile iron gate valve for water-based fire protection systems.
It uses a resilient wedge design with an EPDM sealing surface to support reliable shut-off and a straight-through waterway. The non-rising stem design provides compact operation and is suitable for fire water piping installations.
This website model corresponds to catalogue model Z45-300A. Use the verified dimension table from catalogue P22 and confirm certification coverage before order.
Key Features
• NRS resilient wedge gate valve
• Flanged connection
• Maximum working pressure: 300 PSI
• Ductile iron body and bonnet
• EPDM resilient sealing
• Straight-through waterway
• Interior and exterior epoxy coating
• Designed for indoor and outdoor fire protection water systems
• Catalogue model and dimensions verified against the uploaded model mapping table
Technical Specifications
| Items | Specification |
|---|---|
| VTCON Model | VT-GV-FG-NRS-200 |
| Original Catalogue Model | Z485 |
| Product Name | Flanged x Grooved NRS Gate Valve |
| Valve Type | Resilient wedge NRS gate valve |
| Connection | Flanged x Grooved |
| Design Standard | ANSI / AWWA C515 |
| Face-to-Face Standard | ASME B16.10 |
| Flange Standard | ASME/ANSI B16.1 Class 125; ASME/ANSI B16.42 Class 150; BS EN 1092-2 PN16; GB/T 9113.1 |
| Items | Specification |
|---|---|
| Groove Standard | ANSI/AWWA C606 or metric groove standard |
| Maximum Working Pressure | 200 PSI |
| Maximum Testing Pressure | 400 PSI |
| Working Temperature | 0–80°C / 32–176°F |
| Body | Ductile iron |
| Disc | Ductile iron with EPDM resilient sealing |
| Coating | Epoxy coating or coating upon request |
| Size Range | 2"–12" / DN50–DN300 |
| Approvals | UL / CUL / FM and NSF/ANSI 61 & 372 shown for the range |
Product Structure & Dimensions

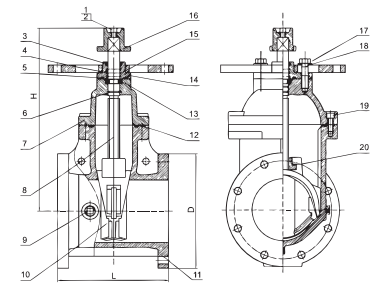

Flanged NRS Gate Valve Version A Structure & Dimensions
| Size (in) | DN | L (mm) | H (mm) | Flange D (mm) | Pipe O.D. (mm) | Groove E (mm) | F (mm) | G (mm) |
|---|---|---|---|---|---|---|---|---|
| 2 | 50 | 178 | 265 | 152 | ||||
| 2-1/2 | 65 | 190 | 292 | 178 | ||||
| 3 | 80 | 203 | 322 | 191 | ||||
| 4 | 100 | 229 | 342 | 229 | ||||
| 5 | 125 | 254 | 412 | 254 | ||||
| 6 | 150 | 267 | 448 | 279 | ||||
| 8 | 200 | 292 | 534 | 343 | ||||
| 10 | 250 | 330 | 635 | 406 | ||||
| 12 | 300 | 356 | 720 | 483 |
Dimensions are for reference only. Please contact VTCON for detailed drawings and project requirements.
