Overview

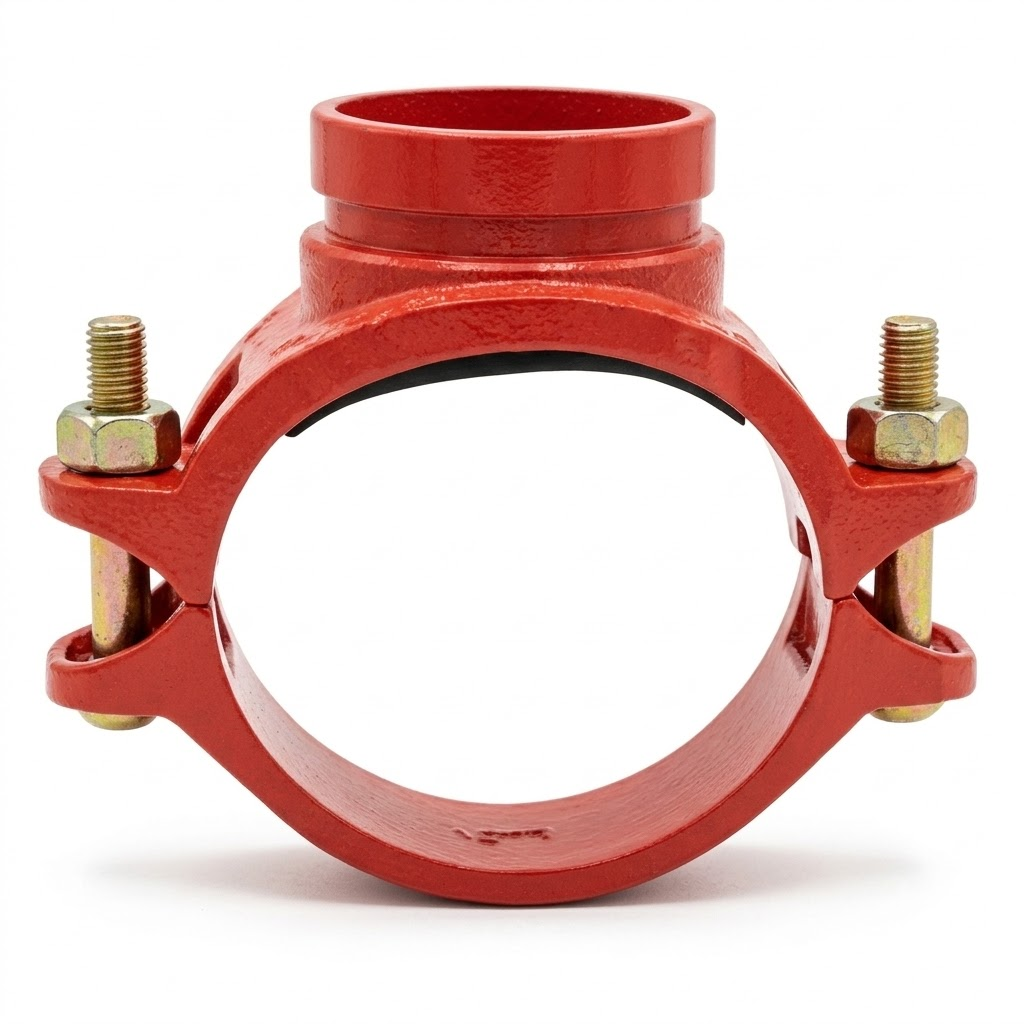

The VTCON Grooved Mechanical Tee is used to create a branch outlet connection directly from the main pipe without welding.
The mechanical outlet design helps simplify installation and supports fire protection piping layouts where branch connections are required.
Please check the product drawing, branch size and dimension table carefully before enquiry or project use.
Key Features
• Matched with catalogue Style 3G for clear model identification
• Ductile iron ASTM A-536 Grade 65-45-12 for strength and durability
• Working pressure: 300 PSI / 2.065 MPa / 20.65 bar
• Connection type: Grooved outlet mechanical tee
• Fusion bonded epoxy coated surface; optional hot-dip galvanized or other finishes available
• Designed for branch outlet connection without welding
• Gasket follows the pipe arc to support sealing performance
• Hole cutting should be centered on the pipe and mechanically opened
Technical Specifications
| Items | Specification |
|---|---|
| Product Name | Grooved Reducing Tee |
| Style | 131 |
| Product Type | Grooved Non-Gasket Fittings |
| Material | Ductile cast iron QT450-12 / ASTM A-536 Grade 65-45-12 |
| Connection | Grooved × grooved reducing tee |
| Working Pressure | 300 PSI / 2.065 MPa / 20.65 bar |
| Items | Specification |
|---|---|
| Surface Finish | Fusion Bonded Epoxy Coated |
| Optional Finish | Hot-dip galvanized, painted color or other finish upon request |
| Standard Color | Orange red |
| Size Range | DN32×DN25–DN300×DN250 / 1-1/4"×1"–12"×10" / 42.4×33.7–323.9×273.0 mm |
| Application | Fire protection piping systems |
| Certification | FM Approved / UL Listed |

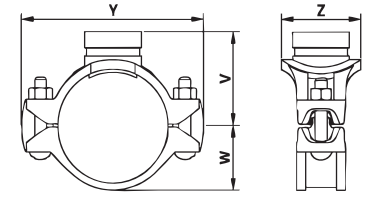

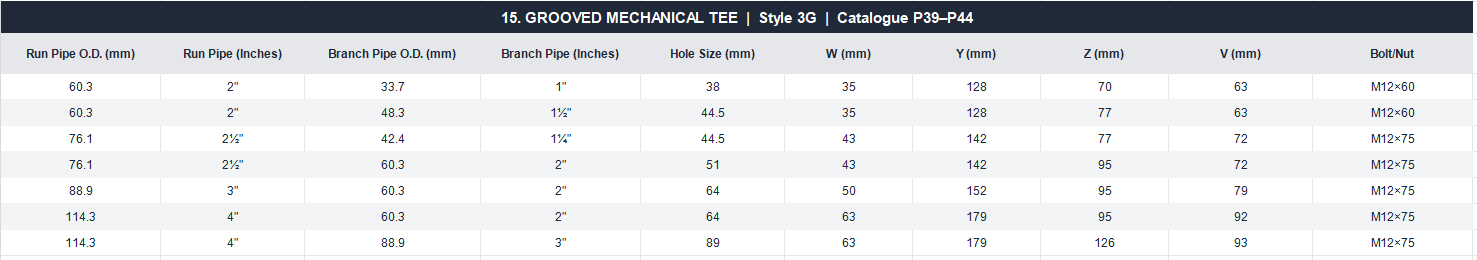

Product Structure & Dimensions
Grooved Mechanical Tee Structure & Dimensions
Dimensions are for reference only. Please contact VTCON for detailed drawings and project requirements.
