Overview

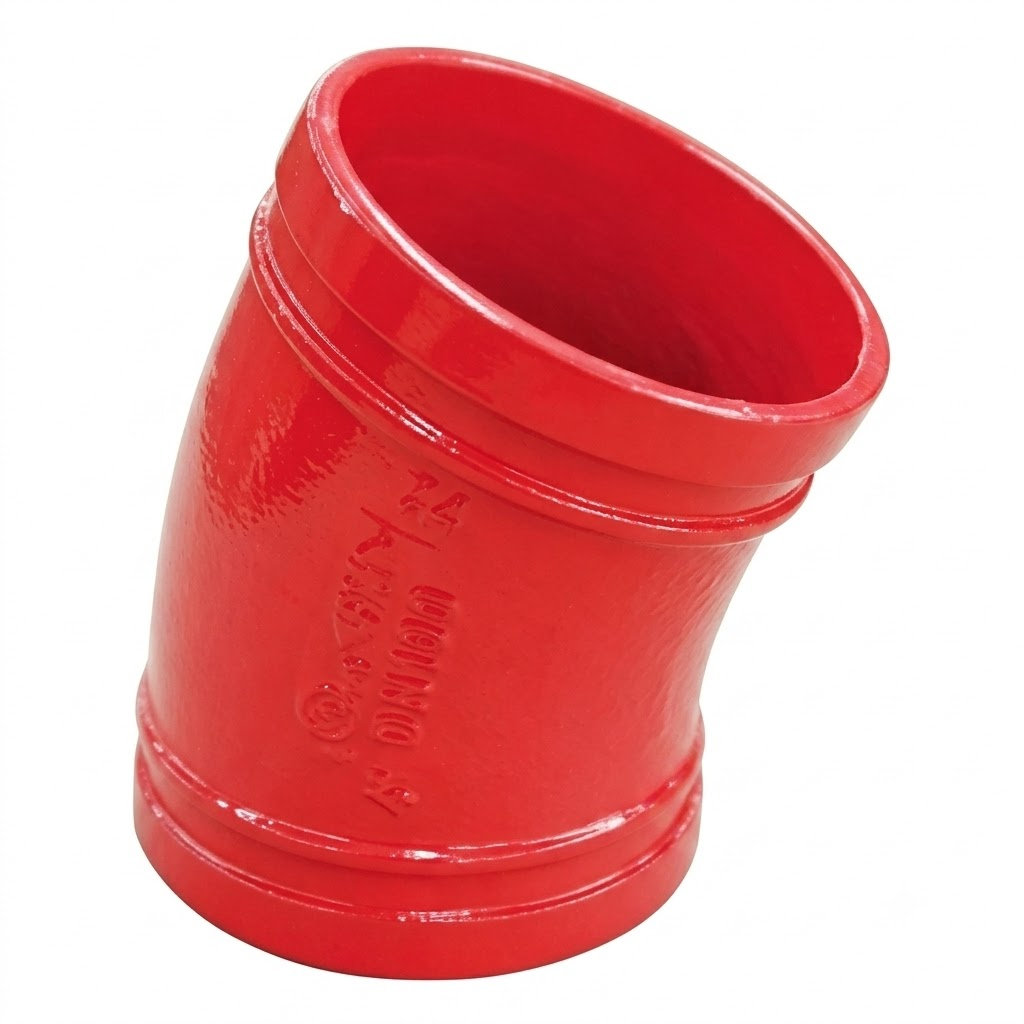

The VTCON 22.5° Elbow is used to change flow direction in grooved fire protection piping systems.
The fitting is made for practical project installation and can be matched with grooved couplings and related fittings.
Please confirm angle, pipe size, finish, certification requirement and project application before quotation.
Key Features
• Matched with catalogue Style 110 for clear model identification
• Ductile cast iron QT450-12 / ASTM A-536 Grade 65-45-12 for strength and durability
• Working pressure: 300 PSI / 2.065 MPa / 20.65 bar
• Connection type: Grooved end
• Fusion bonded epoxy coated surface; optional hot-dip galvanized or other finishes available
• Supports pipe direction change in grooved systems
• Designed for fast installation with grooved couplings
• Available angle/style should be selected according to project layout
Technical Specifications
| Items | Specification |
|---|---|
| Product Name | 22.5° Elbow |
| Style | 110 |
| Product Type | Grooved Non-Gasket Fittings |
| Material | Ductile cast iron QT450-12 / ASTM A-536 Grade 65-45-12 |
| Connection | Grooved end |
| Working Pressure | 300 PSI / 2.065 MPa / 20.65 bar |
| Items | Specification |
|---|---|
| Surface Finish | Fusion Bonded Epoxy Coated |
| Optional Finish | Hot-dip galvanized, painted color or other finish upon request |
| Standard Color | Orange red |
| Size Range | DN25–DN300 / 1"–12" / 33.7–323.9 mm |
| Application | Fire protection piping systems |
| Certification | FM Approved / UL Listed |
Product Structure & Dimensions

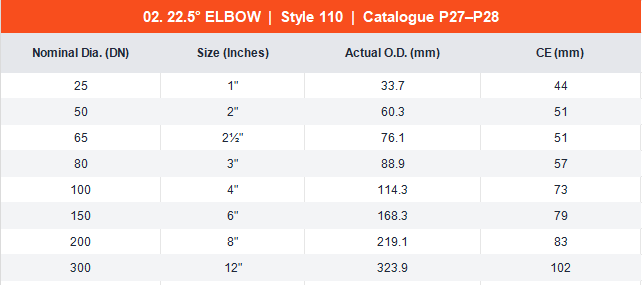

22.5° Elbow Structure & Dimensions
Dimensions are for reference only. Please contact VTCON for detailed drawings and project requirements.
