Overview

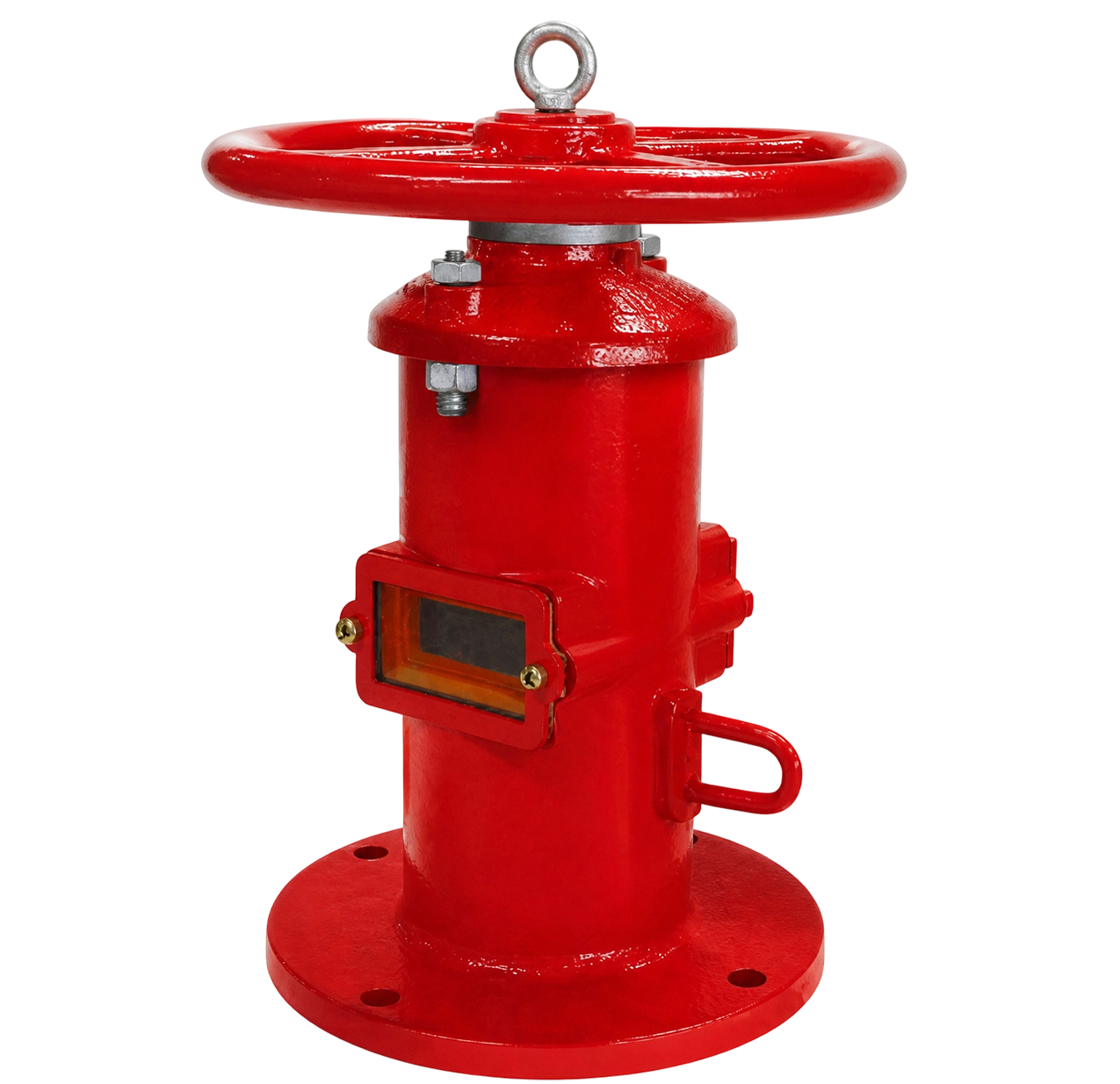

The VTCON Wall Type Indicator Post is mounted on the accessible side of a wall and connects through the wall to an NRS gate valve.
The handwheel operates the valve through a connecting rod, while the indicator window shows the OPEN/SHUT position.
The current catalogue does not provide a complete dimension table. Confirm wall thickness, valve centerline, connecting-rod length and mounting dimensions with the supplier.
Key Features
• Remote operation through a wall
• OPEN/SHUT visual indication
• Handwheel operation
• Adjustable connecting rod
• Suitable for NRS gate valves
• UL / CUL / FM approved range
Technical Specifications
| Items | Specification |
|---|---|
| VTCON Model | VT-IP-WALL |
| Original Model | QSCZG |
| Product | Wall Type Indicator Post |
| Approvals | UL / CUL / FM |
| Design Standard | UL 789 / ULC-ORD-C789 / FM 1110 |
| Items | Specification |
|---|---|
| Installation | Wall-mounted |
| Application | NRS gate valve installed behind a wall |
| Driving Rod | Steel 1045 / stainless steel components according to catalogue |
| Dimensions | Supplier drawing required |
Product Structure & Dimensions

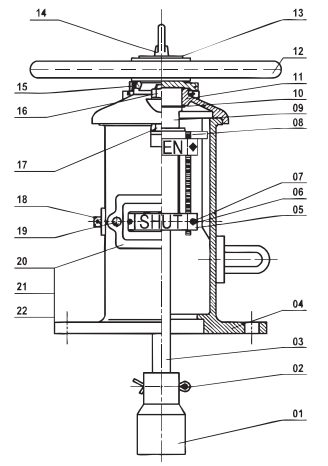

Wall Type Indicator Post Structure & Dimensions
| Required Information | Status |
|---|---|
| Wall Mounting Flange Dimensions | Supplier data required |
| Wall Thickness Range | Supplier data required |
| Connecting-Rod Adjustment Range | Supplier data required |
| Handwheel and Indicator Housing Dimensions | Supplier data required |
| Valve Operating-Nut Interface | Supplier data required |
Dimensions are for reference only. Please contact VTCON for detailed drawings and project requirements.
