Overview

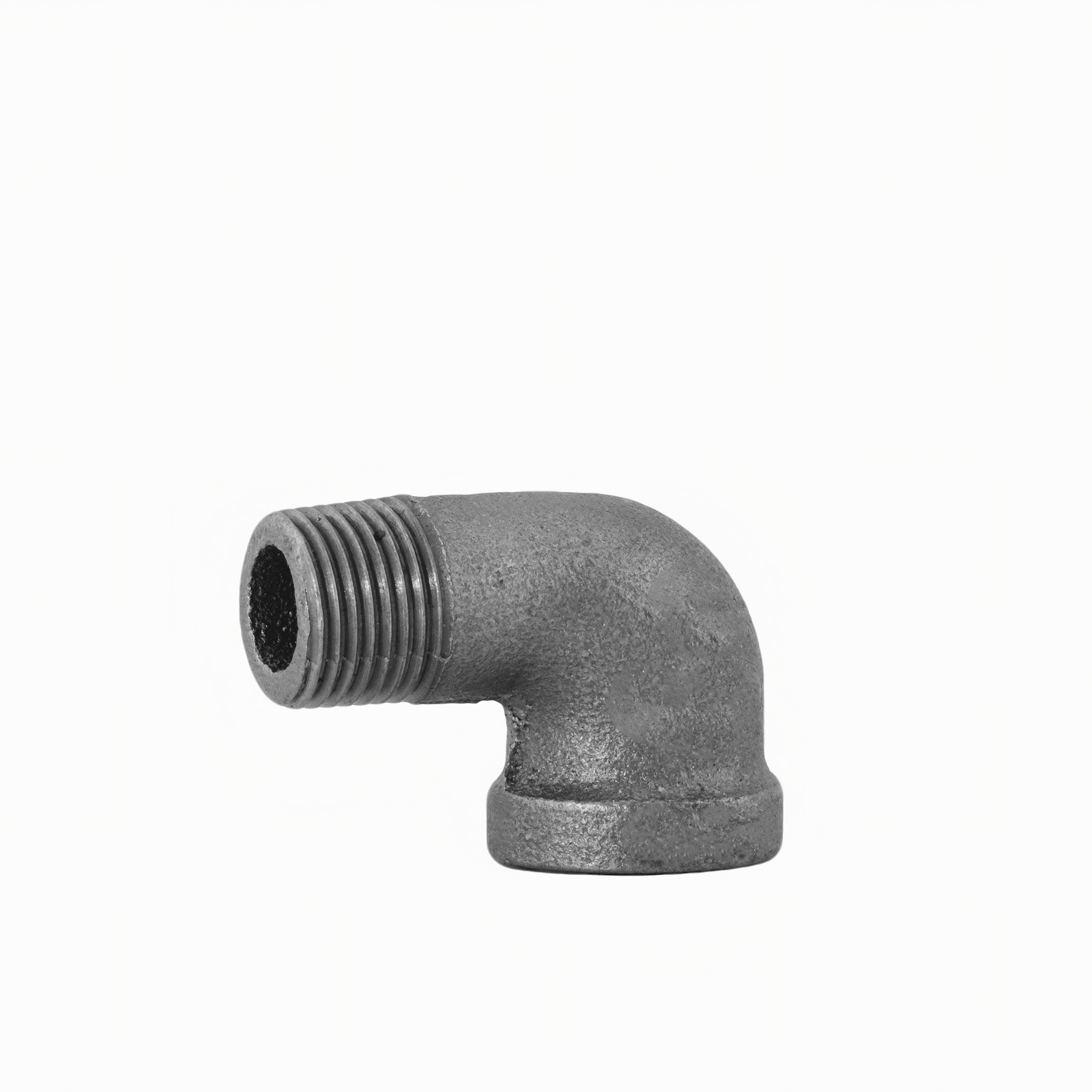

The VTCON 90° Street Elbow Style 92 is designed for threaded fire protection piping where a compact 90-degree direction change and male-to-female connection are required.
The catalogue identifies the malleable iron fitting range as American Standard Class 300, manufactured to ASTM A197 / A197M, with dimensions according to ASME B16.3 / B16.14 and threads according to ASME B1.20.1.
Use the catalogue A and B dimensions for preliminary selection and confirm the required finish, certification and project drawing before order.
Key Features
• Male × female threaded connection
• 90-degree pipe direction change
• American Standard Class 300 product range
• Malleable iron material: ASTM A197 / A197M
• Threads according to ASME B1.20.1
• Black and galvanized finishes shown in catalogue
• Catalogue size table: 1/2″–4″
Technical Specifications
| Items | Specification |
|---|---|
| Product Name | 90° Street Elbow |
| Style | 92 |
| Product Type | Male × female threaded 90° elbow |
| Product Class | American Standard Class 300 |
| Material | ASTM A197 / A197M |
| Connection | Male thread × female thread |
| Items | Specification |
|---|---|
| Dimensions Standard | ASME B16.3 / ASME B16.14 (as applicable) |
| Thread Standard | ASME B1.20.1 |
| Surface Finish | Black or galvanized finish shown in catalogue; confirm product-specific availability |
| Size Range | 1/2"–4" (DN15–DN100) |
| Certification | FM / UL shown for the product range; confirm certification and size range for each style before publication |
| Application | Threaded fire protection piping system |
Product Structure & Dimensions
90° Street Elbow Structure & Dimensions
| Size (Inch) | Nominal Size (mm) | A (mm) | B (mm) |
|---|---|---|---|
| 1/2 | 15 | 28.5 | 41.2 |
| 3/4 | 20 | 33.3 | 48.0 |
| 1 | 25 | 38.1 | 54.4 |
| 1-1/4 | 32 | 44.5 | 62.2 |
| 1-1/2 | 40 | 49.3 | 68.3 |
| 2 | 50 | 57.2 | 82.8 |
| 2-1/2 | 65 | 68.6 | 98.0 |
| 3 | 80 | 78.2 | 114.6 |
| 4 | 100 | 96.3 | 144.5 |
Dimensions are for reference only. Please contact VTCON for detailed drawings and project requirements.
